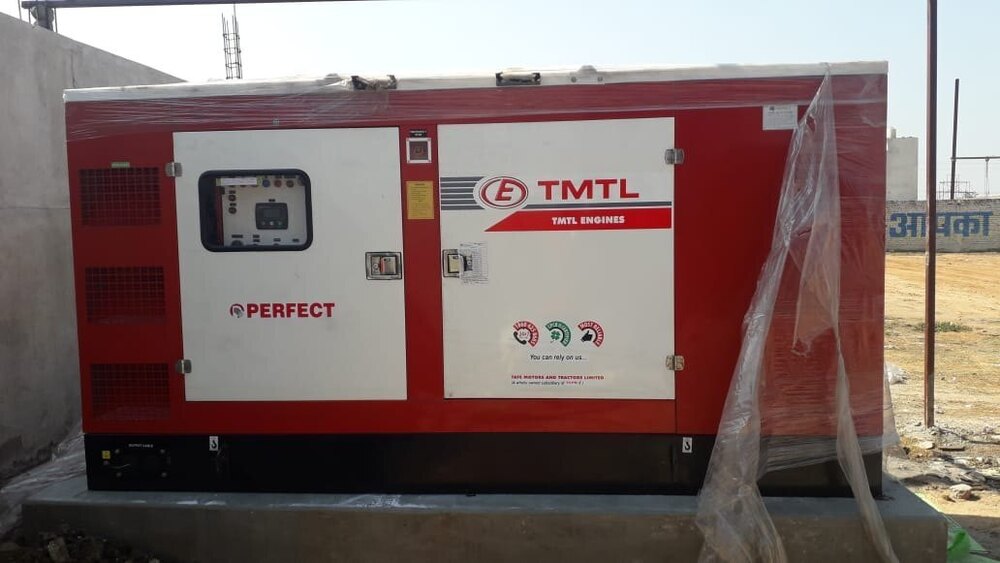

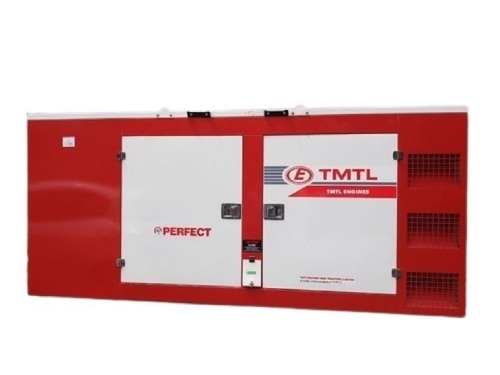

82.5 Kva TMTL Diesel Generator

Price 1138017.96 INR/ Number

Get a Price/Quote

Genset Rating	kVA	125
Genset Model	-	TMTL-125-TP
Duty	Prime / Standby	Prime
Control Panel	-	Options Available for Manual and AMF
Acoustic Insulation Type	-	PU Fire Retardant
DG Set Dimensions (L x B x H)	mm	3300x1300x1700
Fuel Tank Capacity	Ltr.	250
Dry Weight of DG Set (± 25 Kg)*	kg	2050
Engine manufacturer	-	TAFE MOTORS AND TRACTORS LIMITED
Engine brand	-	TMTL ENGINES
Engine model	-	449W0-EG125
Number of cylinders	nos.	4
Aspiration	-	Turbocharged intercooled
Engine power (Gross)	BHP	160.5
Reference standard	-	Engine: As per ISO 3046 -1, Genset: As per ISO 8528
Displacement	cc	4910
Compression ratio	-	17 + 0.5 : 1
Type of governer	-	Electronic/Isochronous
Class of Governing	-	G3
Bore x Stroke	mm	108 x 134
Type of cooling	-	Liquid Cooled
Lube oil Sump capacity (with filters)	Ltr.	18
Coolant Capacity - TOTAL	Ltr.	24
Coolant Capacity - Radiator	Ltr.	7.4
Battery	Volts, Ah	12 VDC, 120 Ah
Exhaust After Treatment System	-	DOC + SCR
Phase	-	3
Voltage	VAC	415
Power Alternator Type	-	Brushless with AVR, Single Bearing, Bell Housing: SAE 3/10
Power Factor	Lag	0.8
Rated speed & frequency	RPM/Hz	1500 /50Hz
Engine power (Gross)	kW	118
Fuel injection System / FIP Type	-	Bosch CRS
Air cleaner	-	Dry Type
Voltage Regulation	% of Rated voltage	± 1%
Insulation	-	Class-H
Make	-	Stamford/ Leroy Somer/ CG/ Meccalte
Starting System	-	Electric
Battery Make	-	Exide / TATA
Silencer Location & Type	-	Internal, Residential
Acoustic Insulation Thickness	mm	50 mm
Dry Weight (Engine)	kg	620
