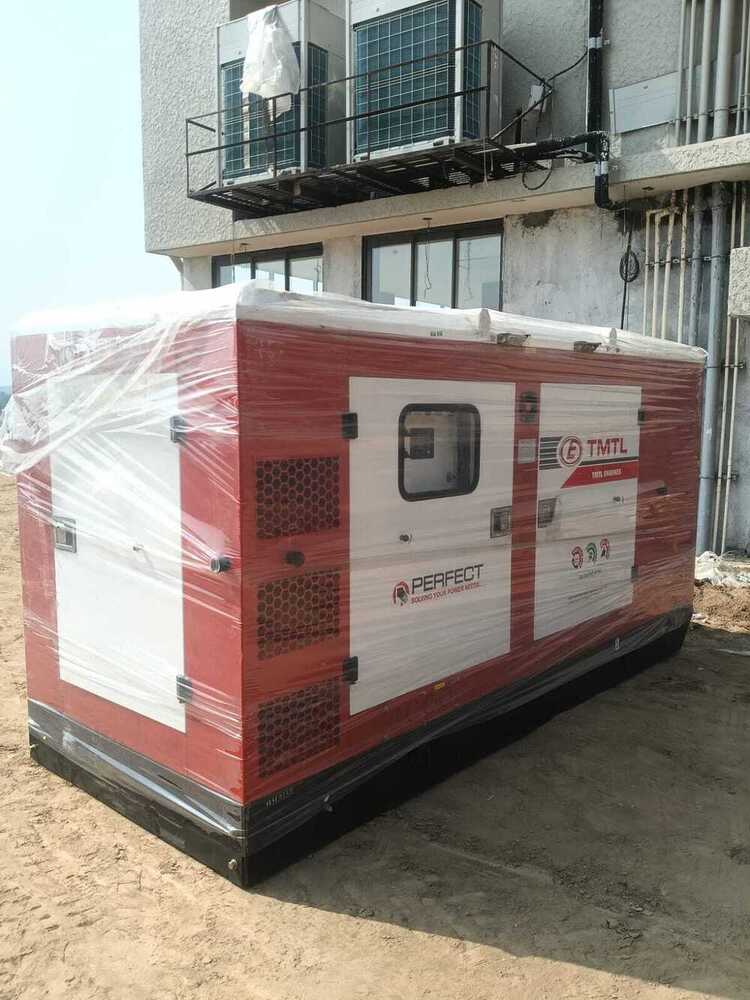

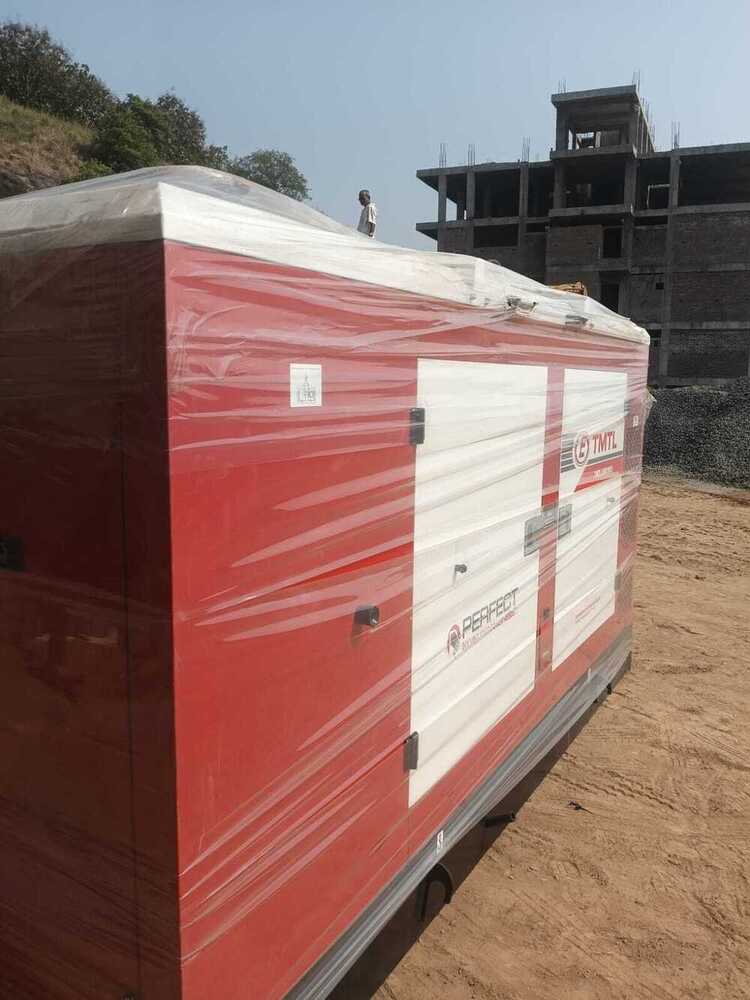

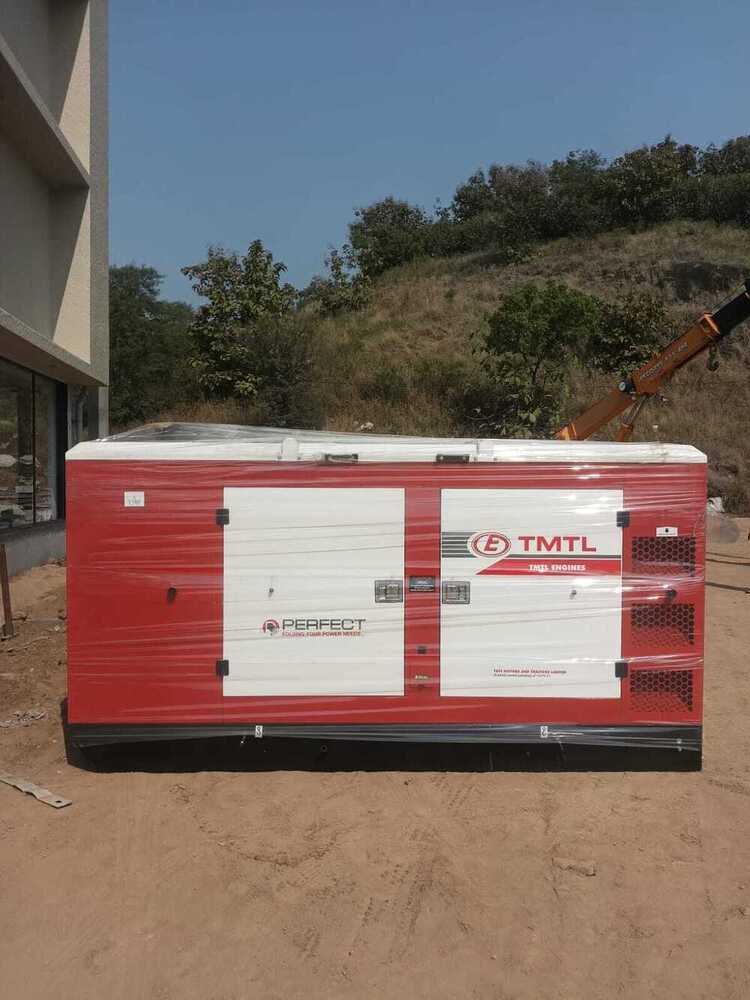

125 kva TMTL Diesel Genrator

About 125 kva TMTL Diesel Genrator

Technical Specification

Genset Rating kVA 125

Genset Model TMTL125TP

Duty Prime  Standby Prime

Control Panel Options Available for Manual and AMF

Acoustic Insulation Type PU Fire Retardant

DG Set Dimensions

L x B x H mm 3300x1300x1700

Fuel Tank Capacity Ltr 250

Dry Weight of DG Set  25 Kg kg 2050

Engine manufacturer TAFE MOTORS AND TRACTORS LIMITED

Engine brand TMTL ENGINES

Engine model 449W0EG125

Number of cylinders nos 4

Aspiration Turbocharged intercooled

Engine power Gross BHP 1605

Reference standard Engine As per ISO 3046 1 Genset As per ISO 8528

Displacement cc 4910

Compression ratio 17  05  1

Type of governer ElectronicIsochronous

Class of Governing G3

Bore x Stroke mm 108 x 134

Type of cooling Liquid Cooled

Lube oil Sump capacity with filters Ltr 18

Coolant Capacity  TOTAL Ltr 24

Coolant Capacity  Radiator Ltr 74

Battery Volts Ah 12 VDC 120 Ah

Exhaust After Treatment System DOC  SCR

Phase 3

Voltage VAC 415

Power Alternator Type Brushless with AVR Single Bearing

Bell Housing SAE 310

Power Factor Lag 08

Rated speed  frequency RPMHz 1500 50Hz

Engine power Gross kW 118

Fuel injection System  FIP Type Bosch CRS

Air cleaner Dry Type

Voltage Regulation of Rated voltage 1

Insulation ClassH

Make Stamford Leroy Somer CG Meccalte

Starting System Electric

Battery Make Exide  TATA

Silencer Location  Type Internal Residential

Acoustic Insulation Thickness mm 50 mm

Dry Weight Engine kg 620
